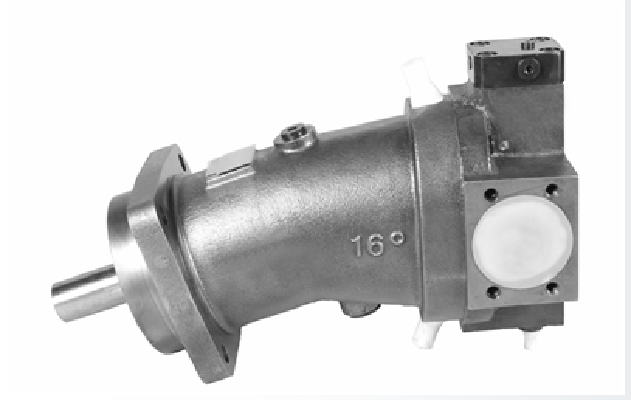

A7V variable displacement piston pump with high pressure, small size, light weight, high speed, impact resistance, etc., the shaft can withstand the radial load. Inlet pressure (open) is 0.09 ~ 0.15MPa. For construction machinery and steel rolling, forging, mining, lifting, machinery, shipbuilding and other open hydraulic system. It constancy power variable (LV), constant voltage (DR), the Electric Proportional Variable (EP), the pilot variable (HD), manually variable (MA) five kinds of variable types.
Product Features:
① Cline axial piston variable pump for open loop hydrostatic transmission. Flow, speed and displacement is proportional to the constant speed can stepless variable.
② between the rotor and the spherical oil pan with oil, the operation can automatically pair, the circumferential speed is low, high efficiency, the drive shaft can withstand the radial load. Ordering example:
GY-A7V160LV2.0LZFOO
A7V variable pump, size 160, with constant power LV control structure 2.0 series, counterclockwise rotation L. German standard spline Z, the side flange connection, no auxiliary components.
